JP-JDD-013 Aluminum Door Profile
The reference drawing shows a tapered edge and rectangular main section. Confirm the dimension datum and mating sections before ordering.
Catalogue reference only. This page identifies a model from the supplied catalogue. It does not establish current stock, certified performance or batch measurements. Availability, specification and suitability are confirmed before an order is accepted.
Request a quote for JP-JDD-013Ask on WhatsApp
Specification reference
| Model reference | JP-JDD-013 |
|---|---|
| Product family | Aluminum profiles |
| Catalogue dimensions | 81 × 30 mm; 15 mm secondary dimension |
| Catalogue wall thickness | 0.50 mm |
| Catalogue weight per metre | 0.316 kg/m |
| Material / alloy and temper | Confirm the material specification, alloy / temper where applicable and tolerances with the selected system. |
| Surface finish | Confirm the requested finish and colour against the selected model. |
| Length / opening / configuration | Confirm stock length or cutting schedule for profiles; finished size, handing, frame, glazing and hardware for doors. |
| MOQ and sample terms | Confirmed with the quotation for the selected model and quantity. |
| Packing and delivery | Confirm packing, production lead time, freight scope and destination in the quotation. |
What to send for a quotation
- Model code and drawing or required door configuration.
- Dimensions with units, quantity and preferred finish.
- Destination country / port and required delivery timing.
- For profiles: alloy / temper, tolerances, cut lengths and mating-system requirements.
- For doors: handing, glazing / panel, frame, hardware and packing requirements.
Email drawings to info@aluprofiletech.com. Final MOQ, sample terms, production time and freight are confirmed in writing.
Source catalogue

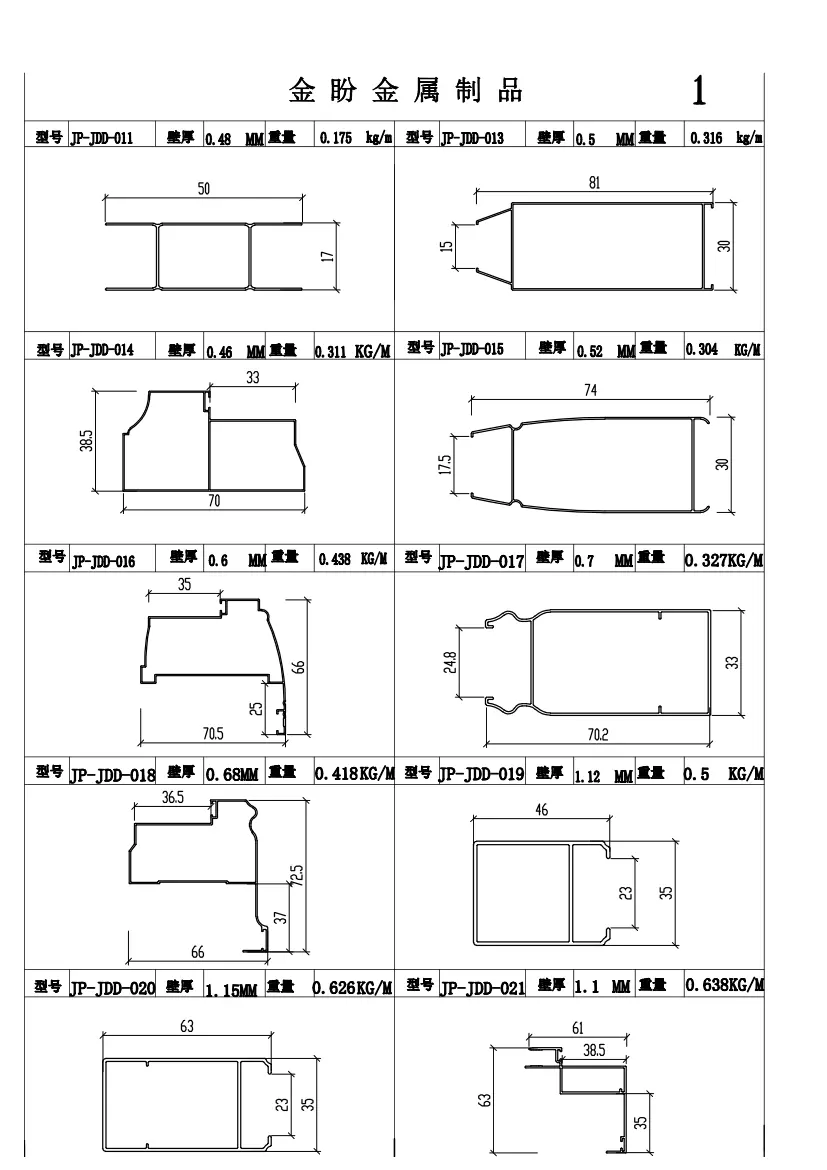

JDD-门料简图 原材料简图, page 1. The sheet contains several models; use the code JP-JDD-013 to identify this product.
Assembly support is a separate scope
Buying a product does not require purchasing a factory setup package. See local assembly support if you also need system, tooling and training coordination.
